Description

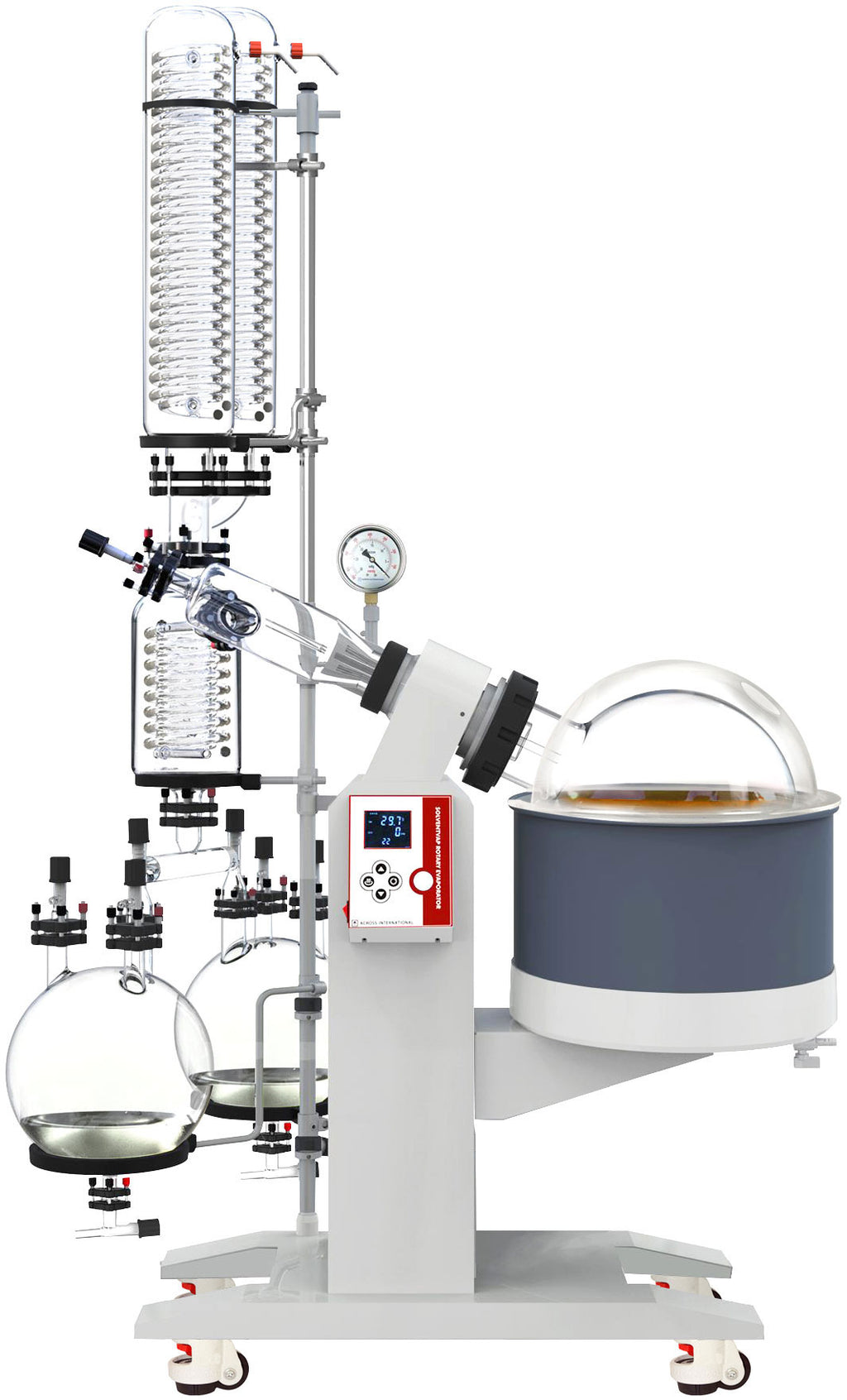

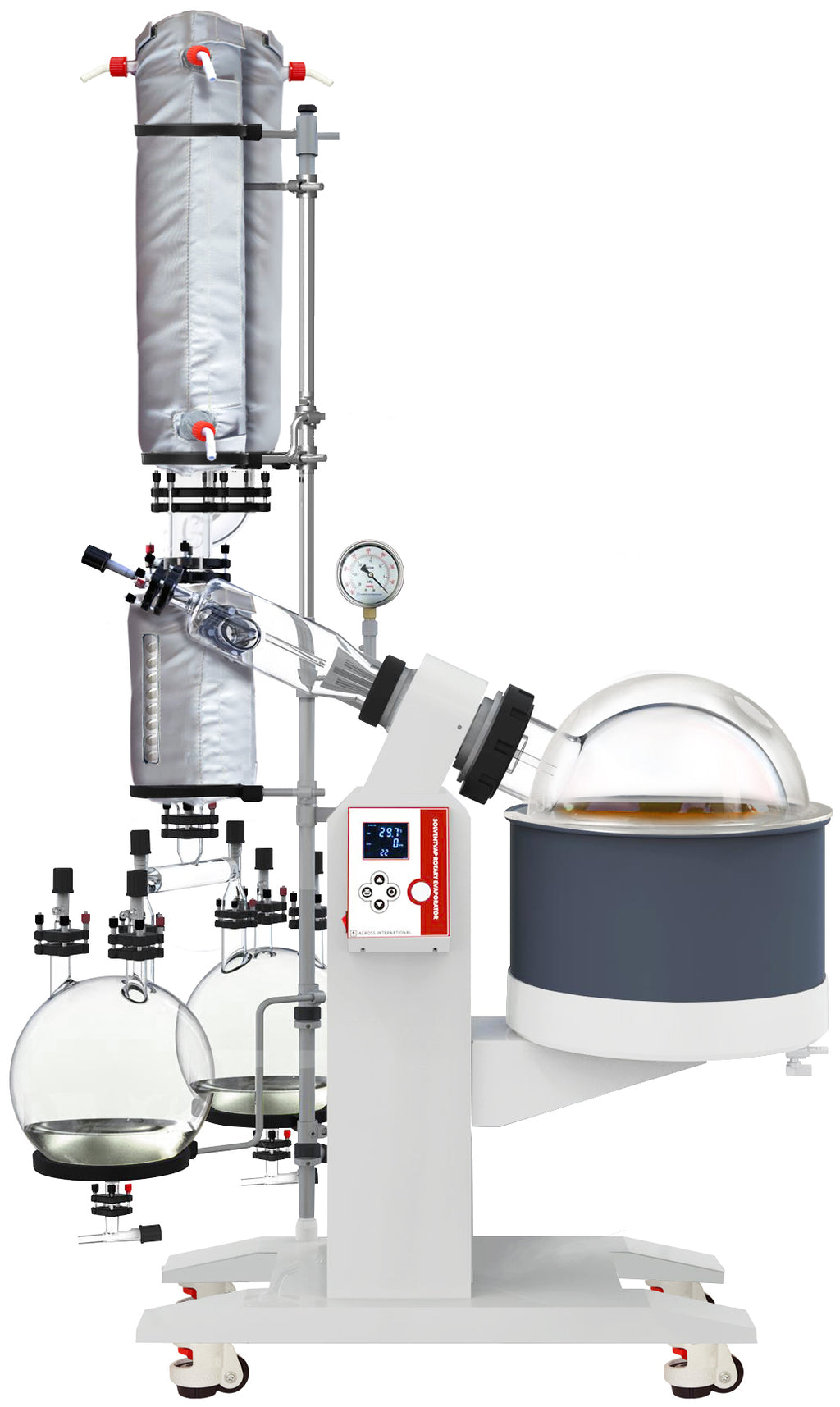

The Ai SolventVap series 20L rotary evaporator has been ETL tested to UL/CSA standard.
All the valves included with this piece are polytetrafluoroethylene (PTFE), which are ideal for solvent-resistant procedures.
The water bath comes with a plexiglass cover that is going to ensure that the heat is evenly dispersed within the chamber.
The motor is designed with a compact, intermeshed worm and worm gear that are able to reach speeds of 10 to 130 revolutions per minute while operating at a quiet volume.

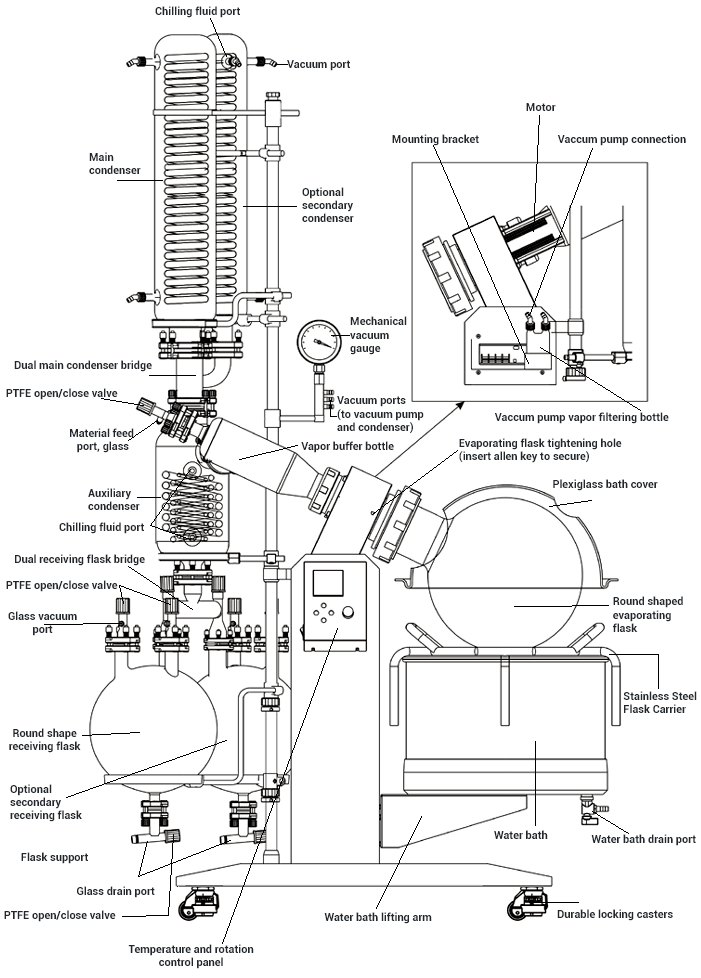

The flask containing the solvent rotates, which continually transfers a thin layer over the entirety of the inner surface. This provides a large area for evaporation to occur, caused by the bath heating up. The rotating system has been designed to fit a special seal that allows the attachment of a vacuum, reducing the boiling point of solvents and doing away with the vapor phase. This unit has been equipped with a user-friendly vacuum release and a continuous feed system, which allows solvent to be drawn into the rotating flask without having to stop the whole process.
It contains several safety features: dry-run protection, shut-off protection for the water bath when temperatures become too high. The water bath also contains a built-in overheat protector that shuts down power to the machine if the controller fails.
|
Electrical Requirements |
220V 50/60Hz single phase, 20A, 4300 watt (rotation motor: 300 watts) |
|
Glass Material |
High borosilicate glass 3.3 |
|
Evaporating Flask |
Capacity: 5.28 gallons (20 liters or 0.7 cu ft) |
|

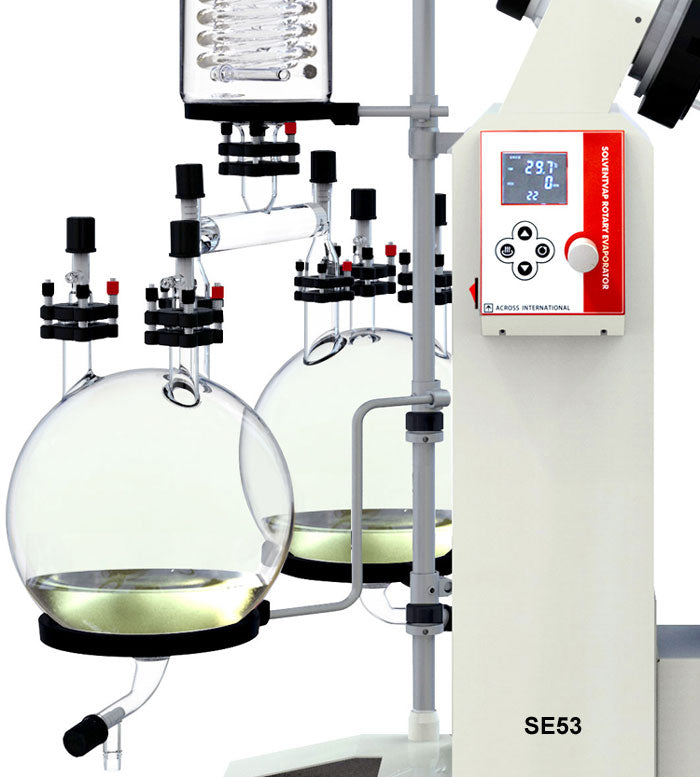

Receiving Flask |
2.64 gallons (10 liters or 0.35 cu ft) |
|
Condenser |
Glassware: Main + auxiliary triple-circulating cold traps, vertical |
|
Working Environment |
5 to 95°F |
|
Water Bath |
Temperature range: ambient to 99°C (210°F) |
|
Vacuum |
Vacuum level: < 3 torrs |
|
Swivel Casters |
Four, built-in with locks |
|
Safety |
Dry-run, over-temp shut-off, built-in circuit breakers |
|
Weight and Dimensions |
Shipping: 238 Lb (evaporator), 130 Lb (glassware) |
|
Warranty |
One year warranty on rotary evaporator except for glassware and all sealing gaskets |
|
Compliance |
UL 61010-1: 2012 Ed.3 + R: 29 Apr 2016 |
